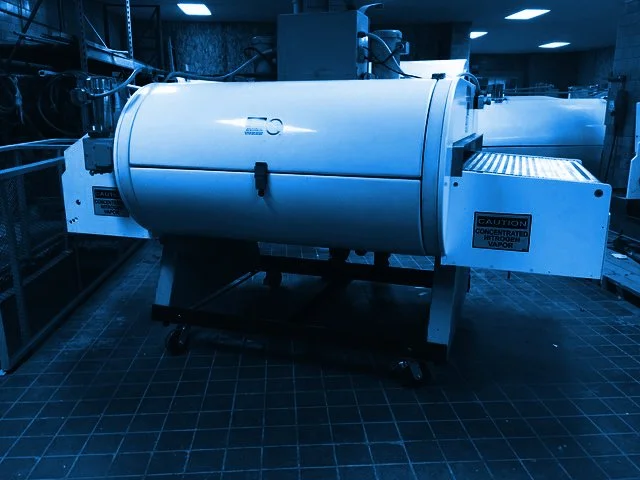

Ultra-Freeze Tunnel Freezers
Today’s competitive food markets demand exceptional product quality. With the Ultra-Freeze System, you seal in freshness and flavor—and minimize dehydration— by fast freezing in an inert environment.
The Ultra-Freeze® process harnesses high-velocity fans to circulate super-cooled CO2 gases, using the “wind chill” effect to rapidly and efficiently freeze. This method removes the thin insulating layer of gas surrounding products, enabling direct contact with cold gases to minimize shrinkage, moisture loss, and preserve product quality.
Precise temperature control prevents dry ice build-up, optimizing CO2 consumption by matching injection rates to product heat loads. Products move through an insulated modular tunnel featuring controlled temperature zones for efficient freezing. Designed with durability and hygiene in mind, the freezer is built using food-grade materials, stainless steel components, and easy-to-clean surfaces providing reliable performance for a wide range of applications.
Drive Down Freezing Processing Costs While Saving Space and Time
Not only is the initial investment in an Ultra-Freeze significantly lower than that for a mechanical freezing system, the Ultra-Freeze takes less time to deliver, install, and get up to speed. 3-Tier option have a much smaller footprint, yet provides greater processing flexibility.
Modularity Speeds ROI While Scaling for Future Demand
The Ultra-Freeze System’s modular design allows for easy and cost-efficient expansion as your processing needs grow. You can choose either single or 3-tier modules to meet your specific volume and space requirements.
| Specifications | UltraFreeze Tunnels | |
| CONVEYOR WIDTH | 30" WIDTH | 48" WIDTH |
| Freezer Width | ||
| Door Closed | 4'10" | 6'2" |
| Door Open | 6' | 7'6"" |
| Product Loading Height (+-1.5") | ||
| 1 Tier | 35"" | 35"" |
| 3 Tier | 40.5"" | 40.5"" |
| Product Discharge Height (+-1.5") | ||
| 1 Tier | 23.5" | 23.5" |
| 3 Tier | 28.5" | 28.5" |
| Product Clearances) | ||
| 1 Tier | 8.75" | 8.75" |
| 3 Tier | 4" | 4" |
| Electrical | 230V 60hz standard, 25-100 amps (depending on modules) | |
Freeze Tunnel Options To Meet Your Unique Needs
Depending on your specific application and environment, consider the following Ultra-Freeze options
Directional product transfer devices to maintain orientation for automated packaging.
Smooth tray transfer devices to eliminate product flipping in three-tier freezers.
Side product guards to ensure proper product positioning on the belt.
Nitrogen (N2) or Carbon Dioxide (CO2) dual cryogen capabilities.
Contact us for more details.
